POSITAL سازنده سنسورهای کنترل حرکت و سیستم اطمینان ایمنی است. محصولات شرکت که شامل انکدرهای دوار، انکیلومترها و سنسورهای موقعیت خطی هستند، در طیف وسیعی از تنظیمات از تولید تا استخراج معدن، کشاورزی به انرژی استفاده می شود. POSITAL عضو گروه FRABA بین المللی است. گروه FRABA یک شرکت پیشرو در زمینه بازار است که از طراحی پیشرفته محصول و فرایند تولید استفاده می کند تا اطمینان حاصل شود که مشتریان خود از مزایای رهبری فناوری، انتخاب، کیفیت محصول و قیمت های رقابتی بهره مند شوند.

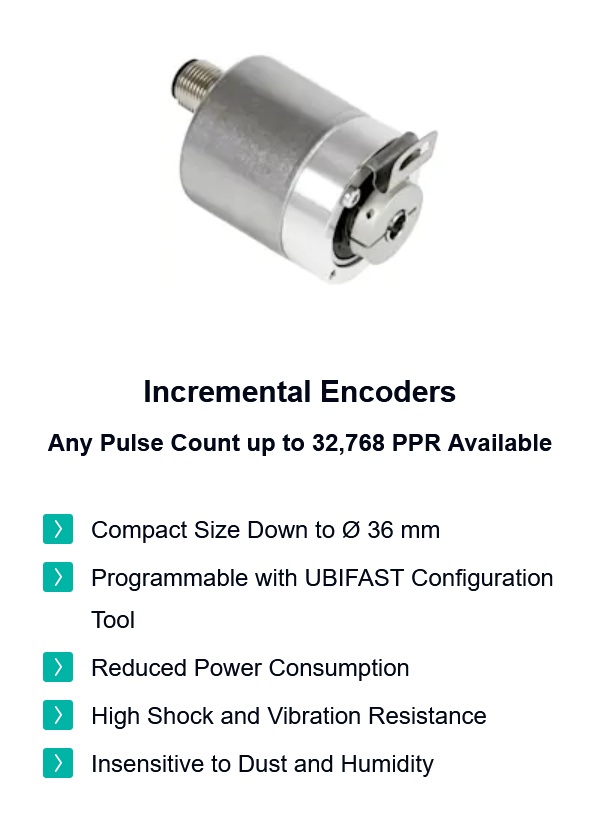

انکدرهای افزایشی

Incremental Interface

programmable_incremental

Incremental encoders generate an output signal each time the shaft rotates a certain amount. The number of signals per turn defines the resolution of the device.

Incremental Specifications      ویژگیها

Go to Product Finder      انتخاب محصول

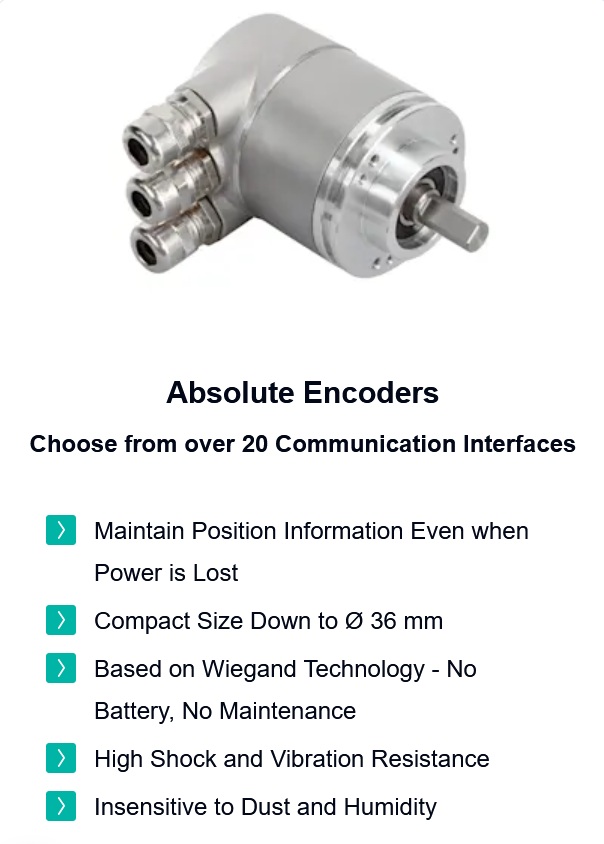

انکدرهای مطلق

Absolute Interface

Singleturn Encoders
Singleturn Encoders from POSITAL

Singleturn encoders are providing a measurement range of 360 degrees (one turn).

Singleturn Finder   انتخاب محصول

Multiturn Encoders
Multiturn Encoders from POSITAL

Multiturn encoders provide a measurement range of more than 360 degrees by additionally measuring the number of revolutions.

Multiturn  Finder   انتخاب محصول

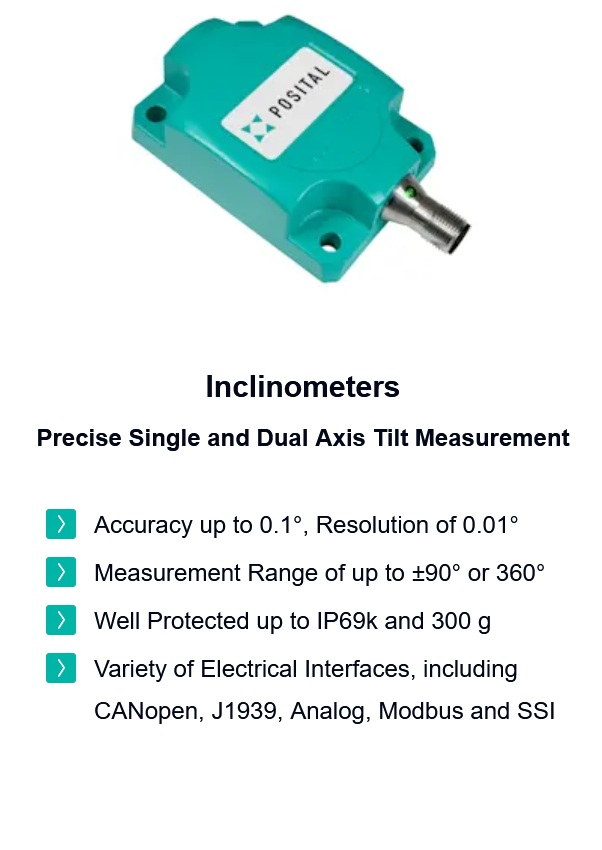

سنسور زاویه

Dynamic Inclinometers

These inclinometers are equipped with a 3D MEMS accelerometer and a 3D MEMS gyroscope. A smart algorithm combines the signal of accelerometer and gyroscope to eliminate the effect of accelerations (e.g. due to rapid motion of the equipment), vibrations and shocks.

Compensation of External Accelerations

Clean Measurement During Dynamic Movements

Accuracy 0.3°

Interfaces: CANopen

Dynamic Inclinometer Finder       انتخاب محصول

Static Inclinometers

These inclinometers are equipped with a 2D MEMS accelerometer as sensor cell. This type of inclinometer achieves a high accuracy in a static system or when the machine is only in a slow motion.

Accuracy 0.1° or 0.5°

Interfaces: CANopen, Analog Current, Analog Voltage, RS232, SSI, J1939, DeviceNet

Static Inclinometer Finder


کابل انکدر

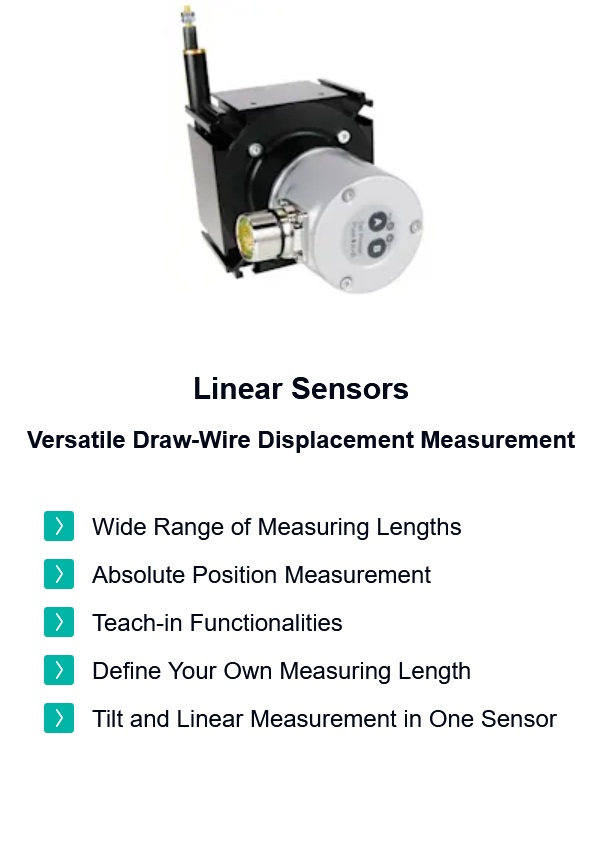

Extruded Metal Housings for Linear Sensor
extruded_metal

This robust aluminum draw wire with flexible mounting options is suitable for demanding environments. Flexible mounting options make installation easy in a variety of applications. Suitable for applications that require high acceleration, up to 7g. Available in 3 [118 in], 5 [196 in], 10 m [393 in] and 15 m [590 in] measuring length.
Robust Linear Sensors

Machined Metal Housings Draw Wire Sensor
machined_metal_1

The aluminum housing provides a reliable sensor ideal for industrial environments. Being both economical and compact, these are appropriate for a wide variety of applications. Available in 1.74 m [ 68.5 in], 3 m [118 in] and 6 m [236 in] measuring lengths.
Industrial Linear Sensors

Plastic Housings for Draw Wire Encoder
plastic

Unbeatable economic pricing in large quantities and a small footprint makes this tough draw wire encoders the preferred OEM customer selection. Well engineered mechanics in combination with POSITAL’s fully digital rotary encoders means these draw wires do not loose accuracy even after one million strokes. Available in 2.4 m [94.49 in] and 7.5 m [295.28 in] measuring lengths.
Economic Linear Sensors


لوازم جانبی

Connectors and Cables

Connectors and Cables

M12, M23 Female and Male Connectors

Find all POSITAL Connectors and Cables

Couplings
couplings

Couplings are used to attach the encoder shaft to the machines’ moving shaft.
Find all POSITAL Couplings

Measuring Wheels
Measuring Wheels

Measuring Wheels coupled with rotary encoders are a simple way to measure direct linear motion.
Find all POSITAL Measuring Wheels

Draw Wire Adapters
draw_wire_adapters_small

Draw Wires or Cable Pull adapters when combined with encoders enable to measure the linear position accurately and also communicate the position over the interface of your choice.
Find all POSITAL Draw Wire Adapters

Configuration and Interface Modules
Configuration and Interface Modules

UBIFAST Configuration Tool (for IXARC Encoders)

SSI2USB Interface Modules

Displays for Analog and Serial Interfaces

Find all POSITAL Configuration & Interface Modules

Counters & Display Modules
display

POSITAL displays provide a direct readout of position, rotational speed or angular displacement.
Find all POSITAL Displays

Explosion Proof Accessories
ex_proof_accessories

Ex-Proof Couplings

Ex-Proof Blind Plugs

Ex-Proof Cable Glands

Ex-Proof Draw Wires

Find all Explosion Proof Accessories

Torque Support
Torque Support

POSITAL provides torque support sets comprising of tethers, clamping discs and mounting screws.
Find all POSITAL toque support models

Adapter Flanges
adapter flanges

Adapter flanges are generally used with POSITAL encoders to exactly fit into the customers’ installation or control cabinet.
Find all POSITAL Adapter Flanges

Reducing Adapter
reducing_adapters

Used in Hub Shaft

Used in Through Hollow Shaft
Find all Reducing Adapter

Clamp Discs
calmp_disc

By using these clamp discs for mounting and adjustments, the zero-point setting can be carried out in a simple way.
Find all POSITAL Clamp Discs

Clamping Rings
clamp rings

Clamping Rings are mechanical adapters used to secure the moving shaft with the encoder’s hollow shaft.
Find all POSITAL Clamping Rings

Connection Caps
connection_caps

Profibus

CANopen

Devicenet
Find all Connection Caps
